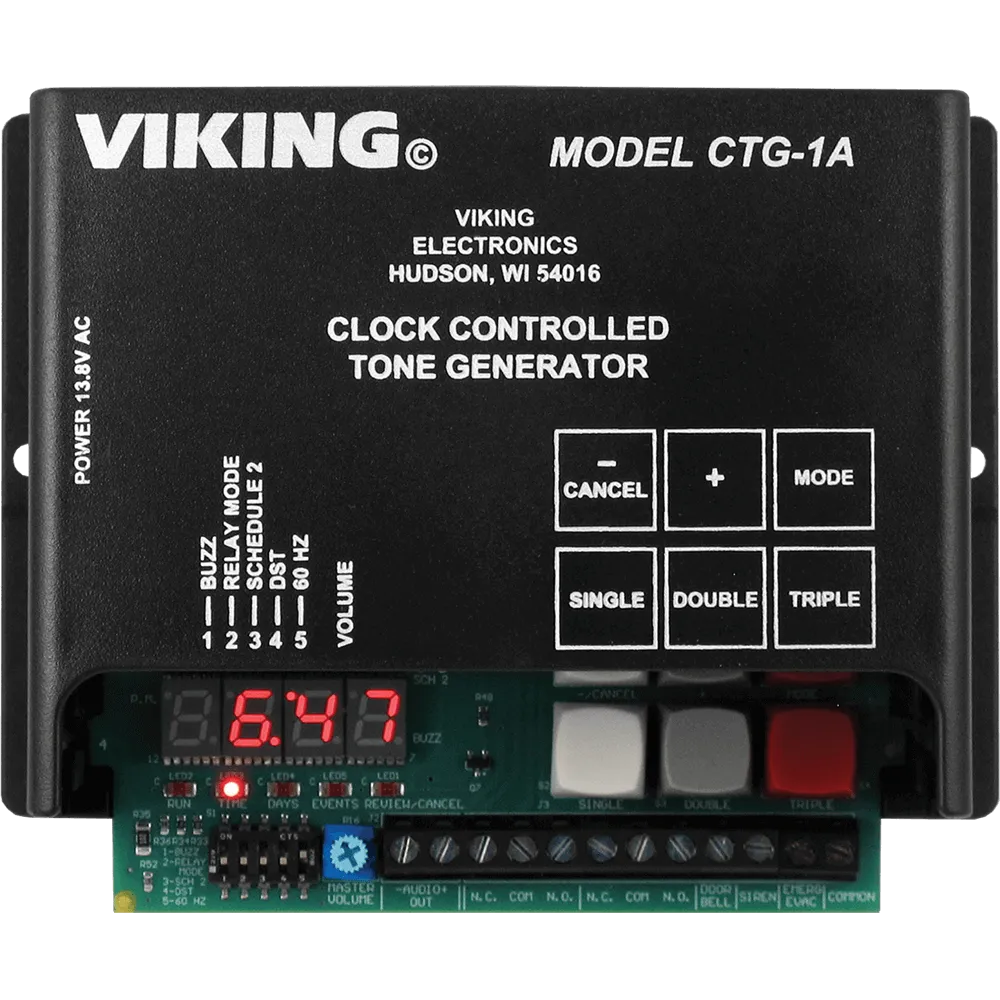

Viking CTG-1A Features:

• Accurate 24 hour digital time clock displays hours and minutes synced to AC power
• User programmable 24 hour, 128 event timer in two separate schedules
• Programmable day of week on/off feature
• Programmable single, double or triple alert tone output (select bong or buzzer)
• 600 Ohm line level audio output with volume control
• Non-volatile memory with four day clock backup
• Two sets of DPDT relay contacts for muting paging or background music during alert tones or timed relay events
• Switchable 50/60 Hz operation
• Switch for Daylight Saving Time
• Time Relay Mode

Viking CTG-1A controlled sounds:

• Emergency siren (yelp) sound
• Temporal (slow whoop) evacuation signal*, *NFPA/ANSI compliant when used with supporting equipment
• Doorbell (chime) sound

Viking CTG-1A Applications:

• Signal the beginning and end of class periods, breaks, and lunch periods for schools
• Signal the beginning and end of shifts, breaks, and lunch periods for factories and other businesses
• Provides a doorbell and/or alarm sounds over an existing paging system, for such applications as door entry, fire, severe weather, etc.
• Use with Viking’s to provide timed messages

Viking CTG-1A Specifications:

• Power: 120V AC/13.8V AC 1.25A UL listed adapter provided
• Dimensions: 5.25” x 3.6” x 1.75” (133mm x 91mm x 44mm)
• Weight: 2 lbs (0.9 Kg)
• Environmental: 32°F to 90°F (0°C to 32°C) with 5% to 95% non-condensing humidity
• Connections: 12 position cage clamp terminal strip
• Internal Clock Backup Time: 4 days
• Time Base: 50/60Hz AC power line
• Time Base Backup Accuracy: /- 5 ppm
• Audio Output: 600 Ohm with volume control potentiometer, maximum level = 17 dBm/5.4Vrms
  across 600 Ohm load
• Relay Output: DPDT rated 30V DC @ 1A, 110V DC @ 0.3A ,125V AC @ 0.5A (resistive loads)
